Special
Machinery

Special machinery and equipment, that have been designed in order to reduced raw material and energy consumption, and the same time, improve the environment

Special
Machinery

Special machinery and equipment, that have been designed in order to reduce raw material and the energy consumption, at the same time, improve the environment.



PDF

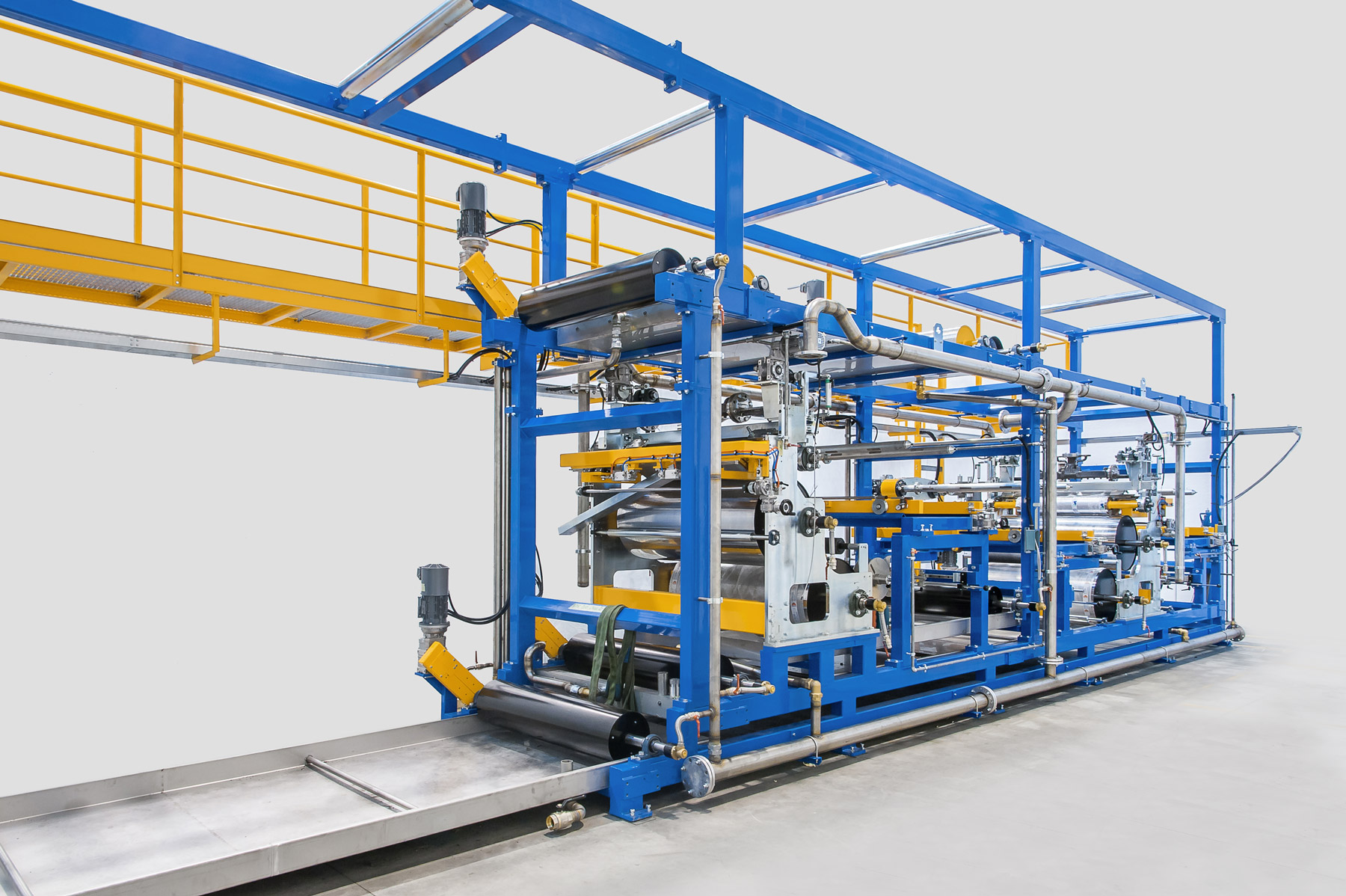

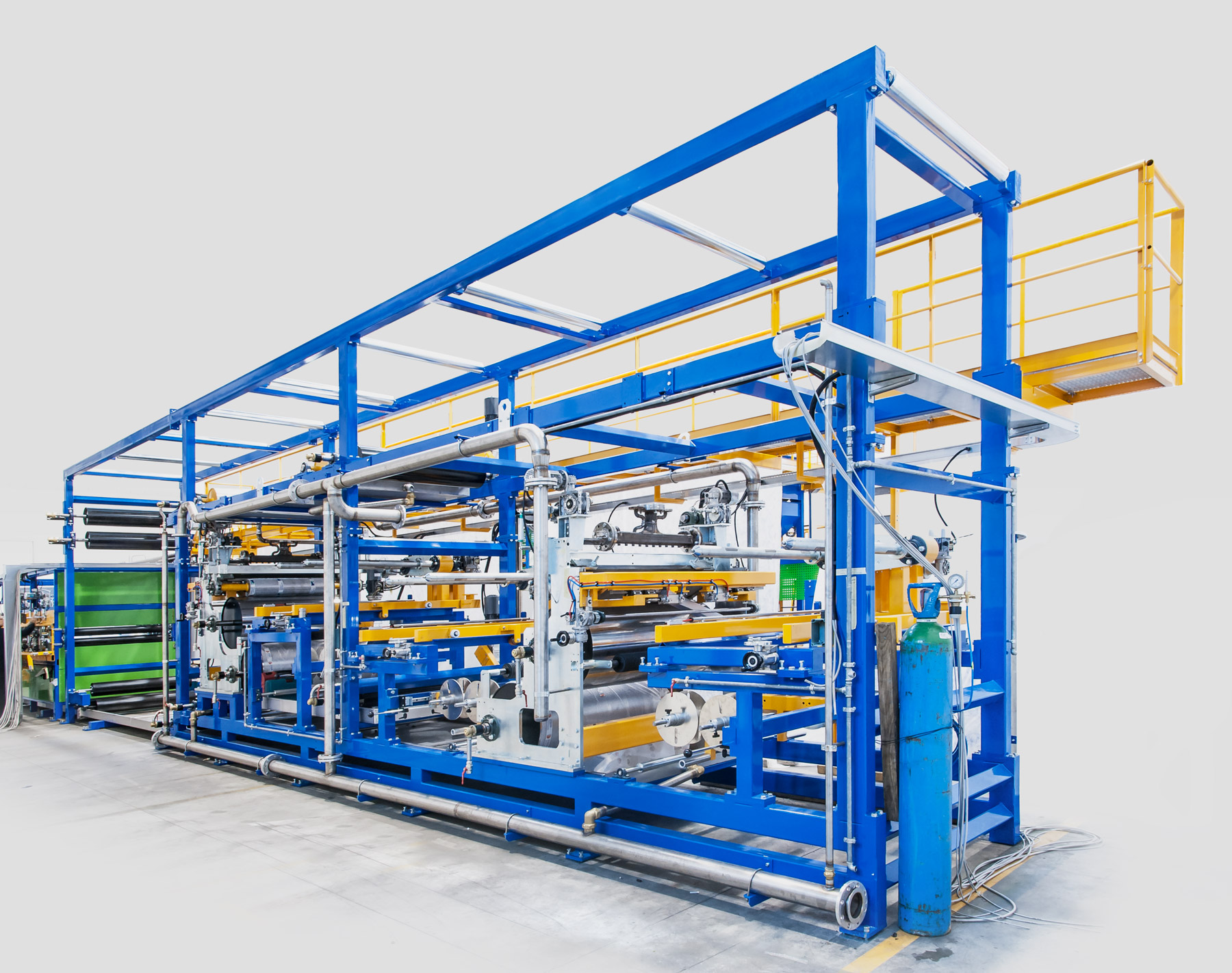

Production lines to manufacture non-reinforced bituminous membranes with single or dual layer.

  • production speed: till 80m/1’
  • single or double layer
  • thickness: from 0,5mm to 5mm
  • device for accurate edge of the final product
  • automatic thickness control
  • automatic tension control

PDF

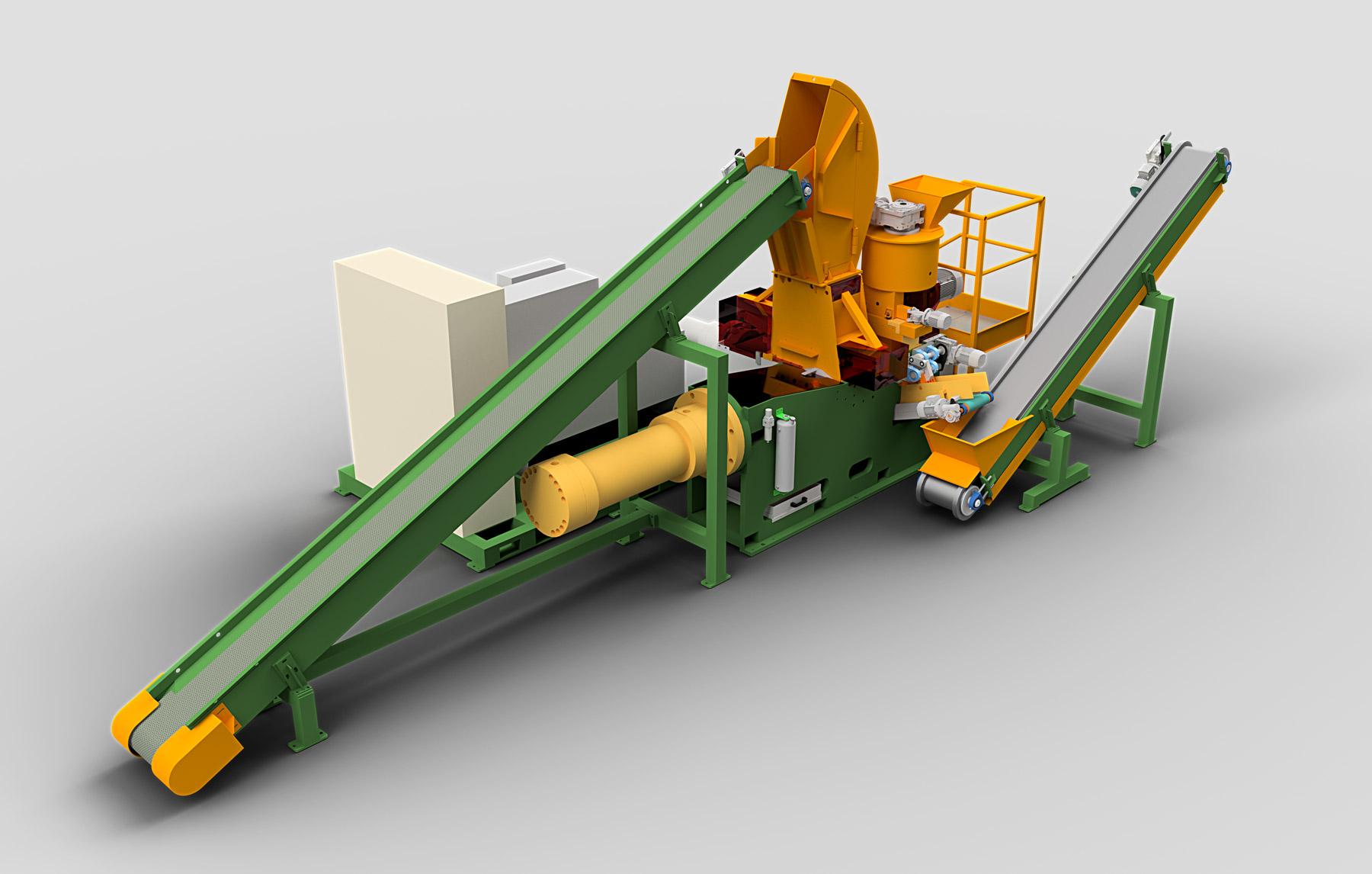

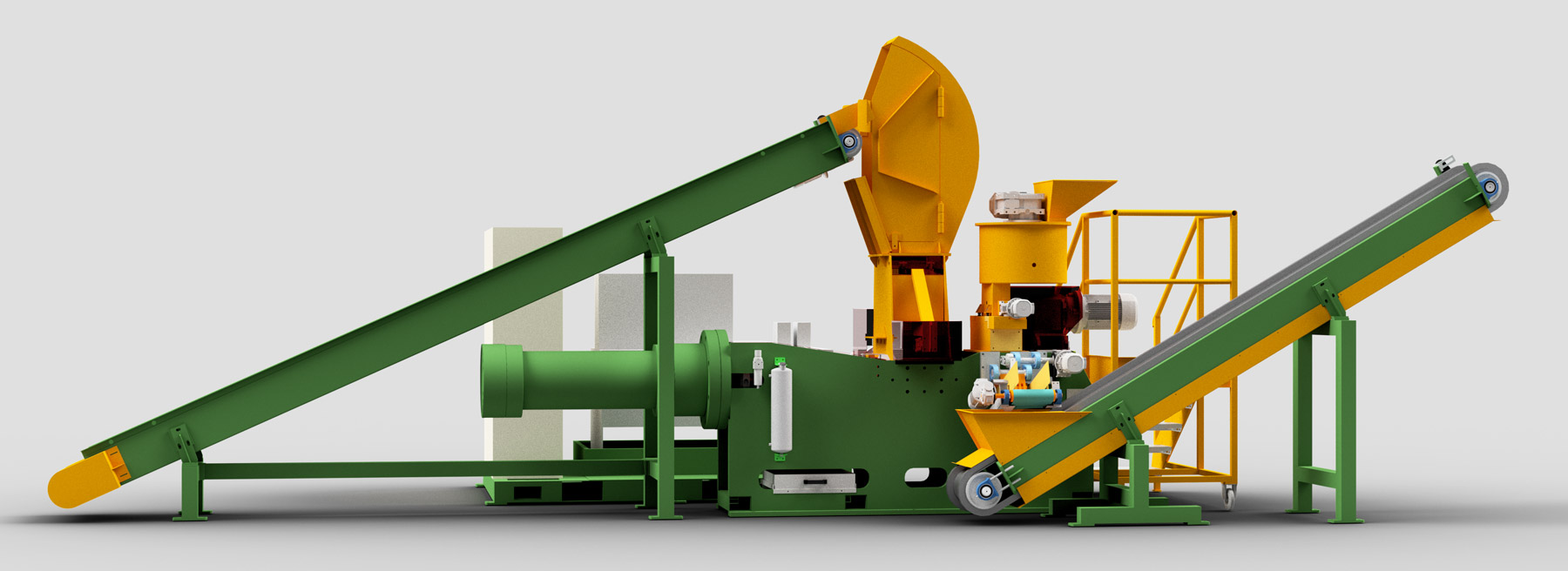

The machinery that we conceived, designed, developed and patented allows us to have, with low energy costs and thus reduced environmental impact, recycled material for reuse in the production cycle with appropriate machinery in different sectors where it’s still uses bitumen based products.
The materials processed with the machine are: bituminous, scraps of bituminous membranes, shingles based bitumen processing waste tiles bitumen based.

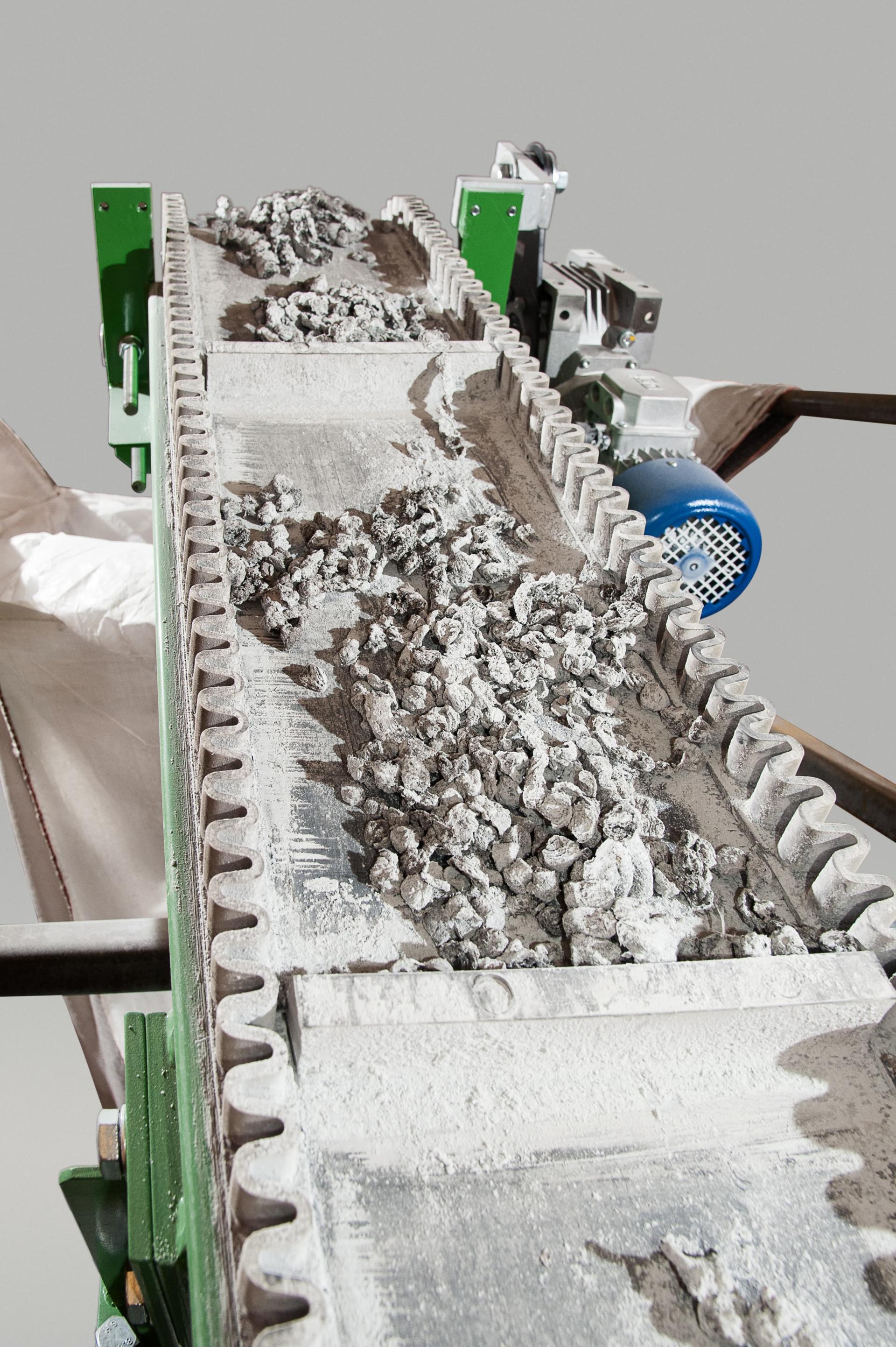

This machine transforms the bituminous waste material into chips.

Technical Specifications

  • capacity up to 600 kg / hr
  • installed power: maximum 30 Kw
  • dimensions: 3000 x 2500 x 7500 mm

PDF

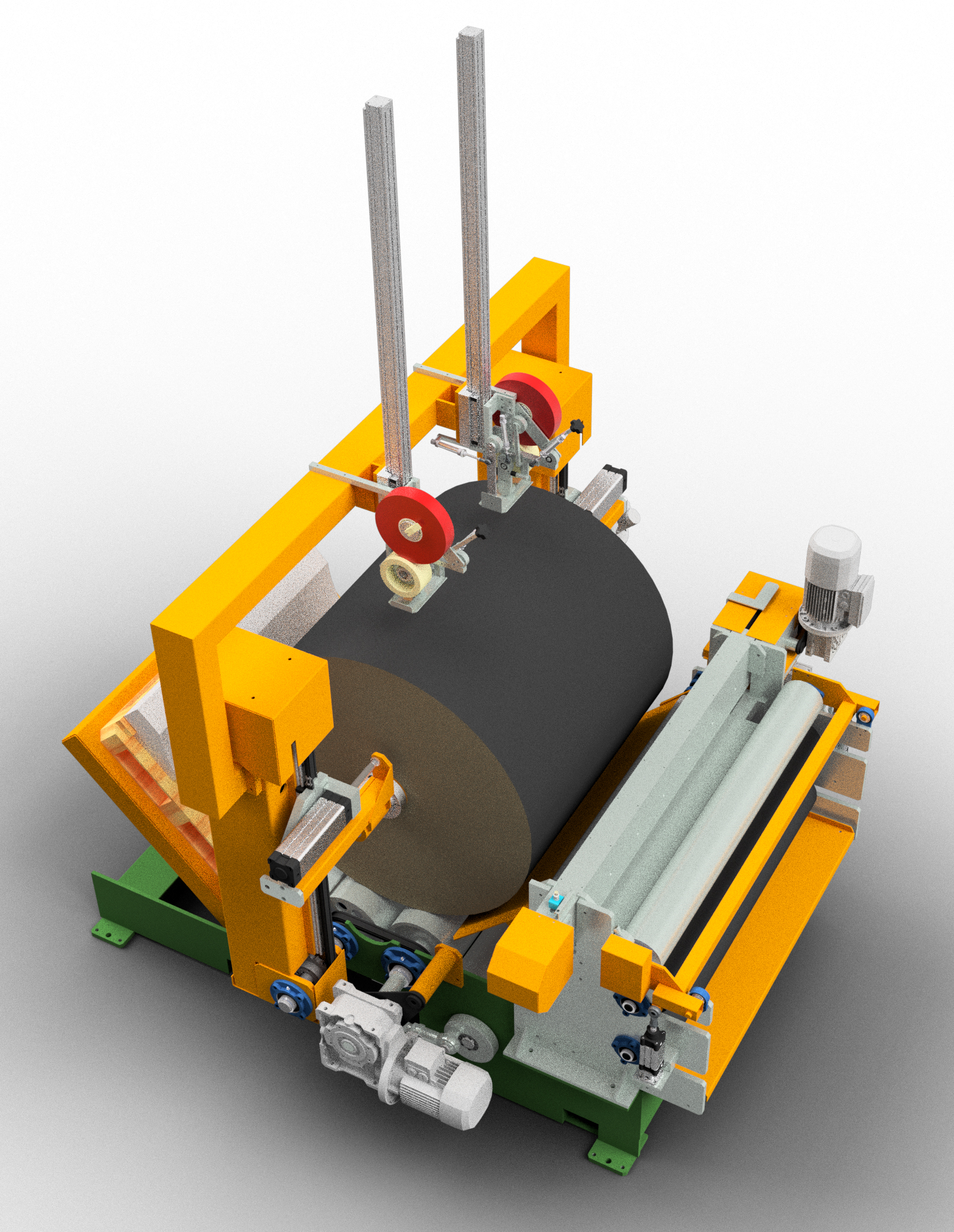

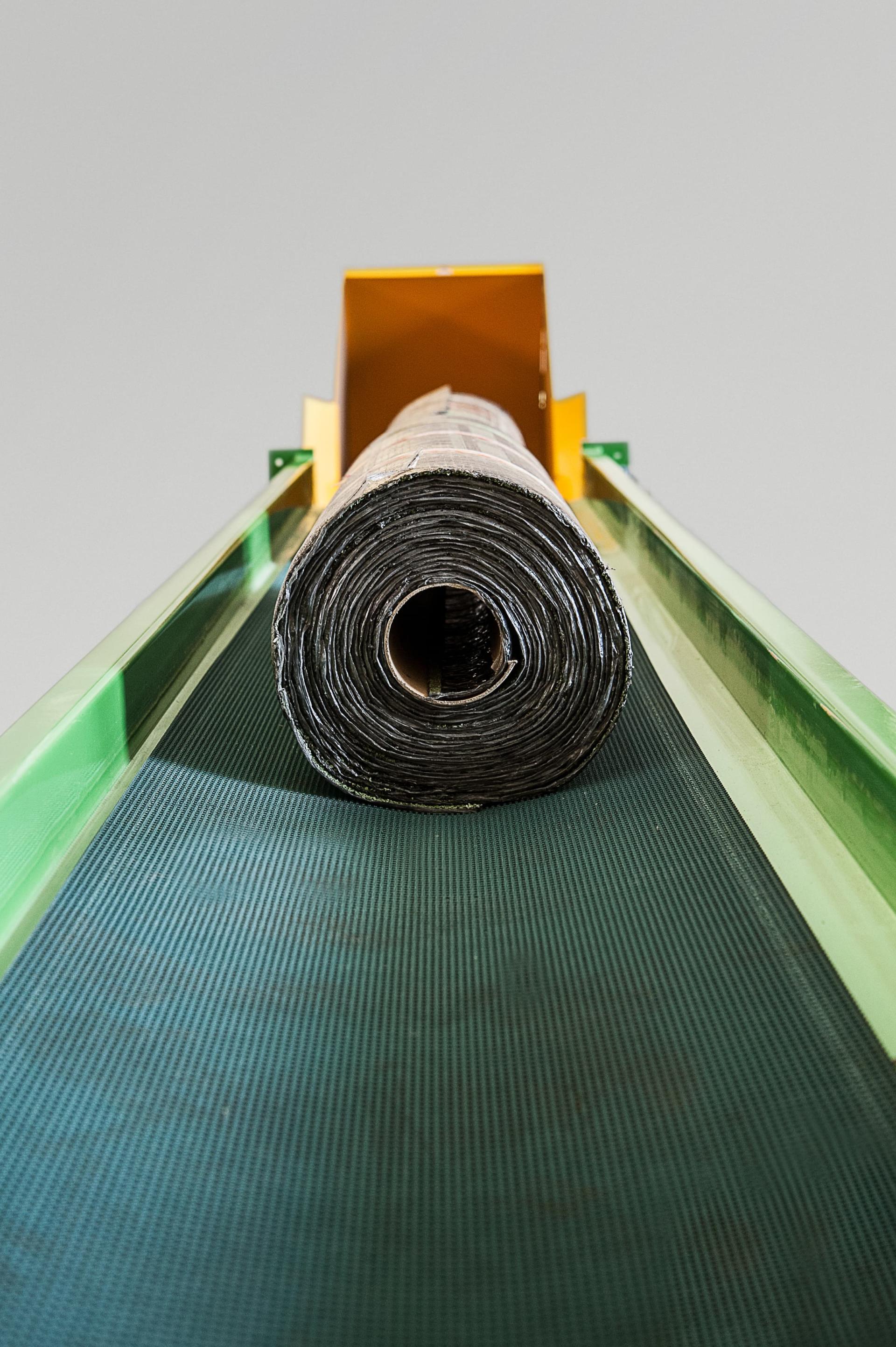

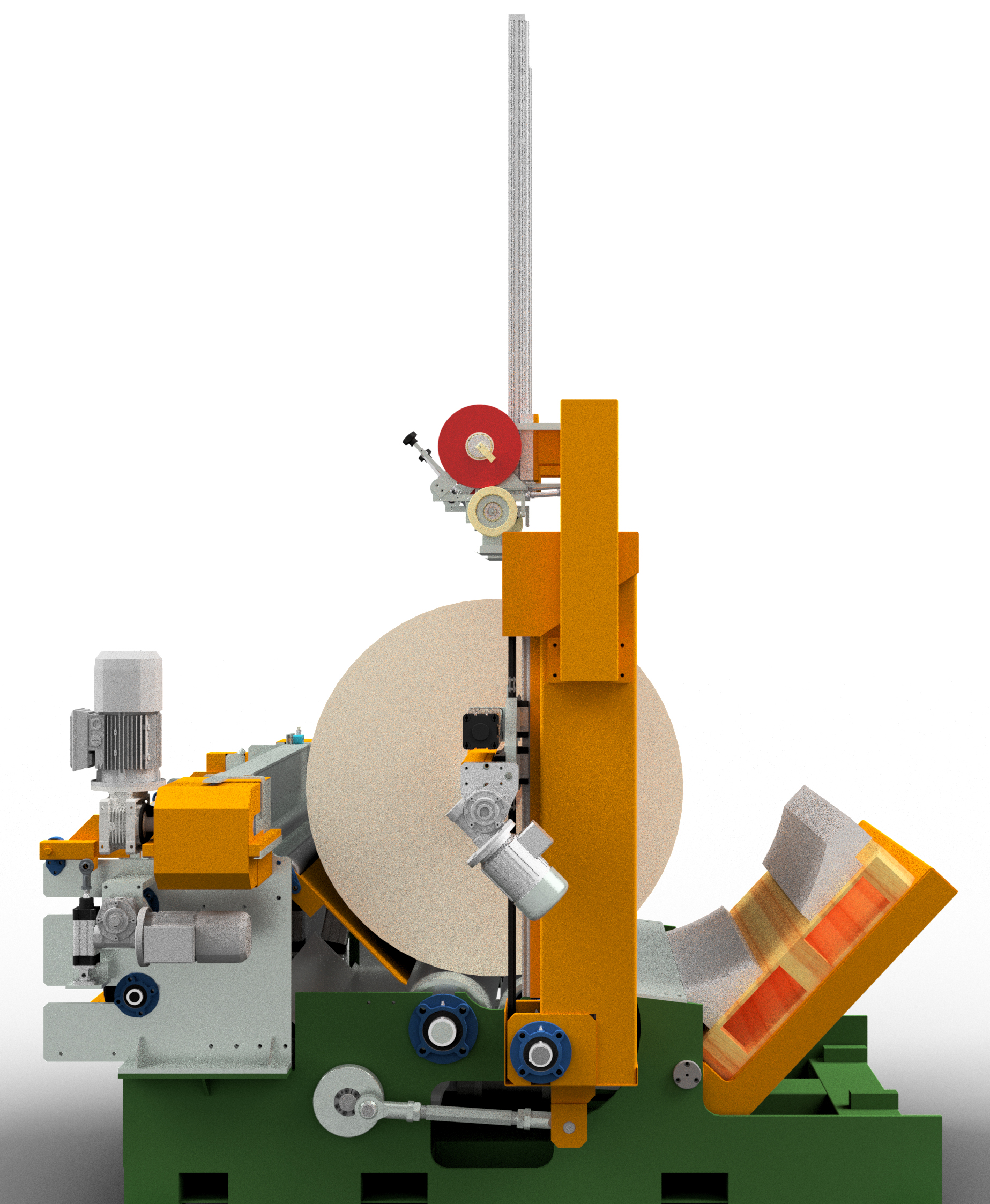

This winder is positioned at the end of the line and allows the waterproofing membrane to wind, in reels like “jumbo” with different thicknesses up to 300mt long.
This machine makes easier for the operator all operations during the production and the final
result is a compact big-roll without any kind of unseating.
Optional:

  • automatic taping system
  • automatic cutting system
  • automatic overturning system

PDF

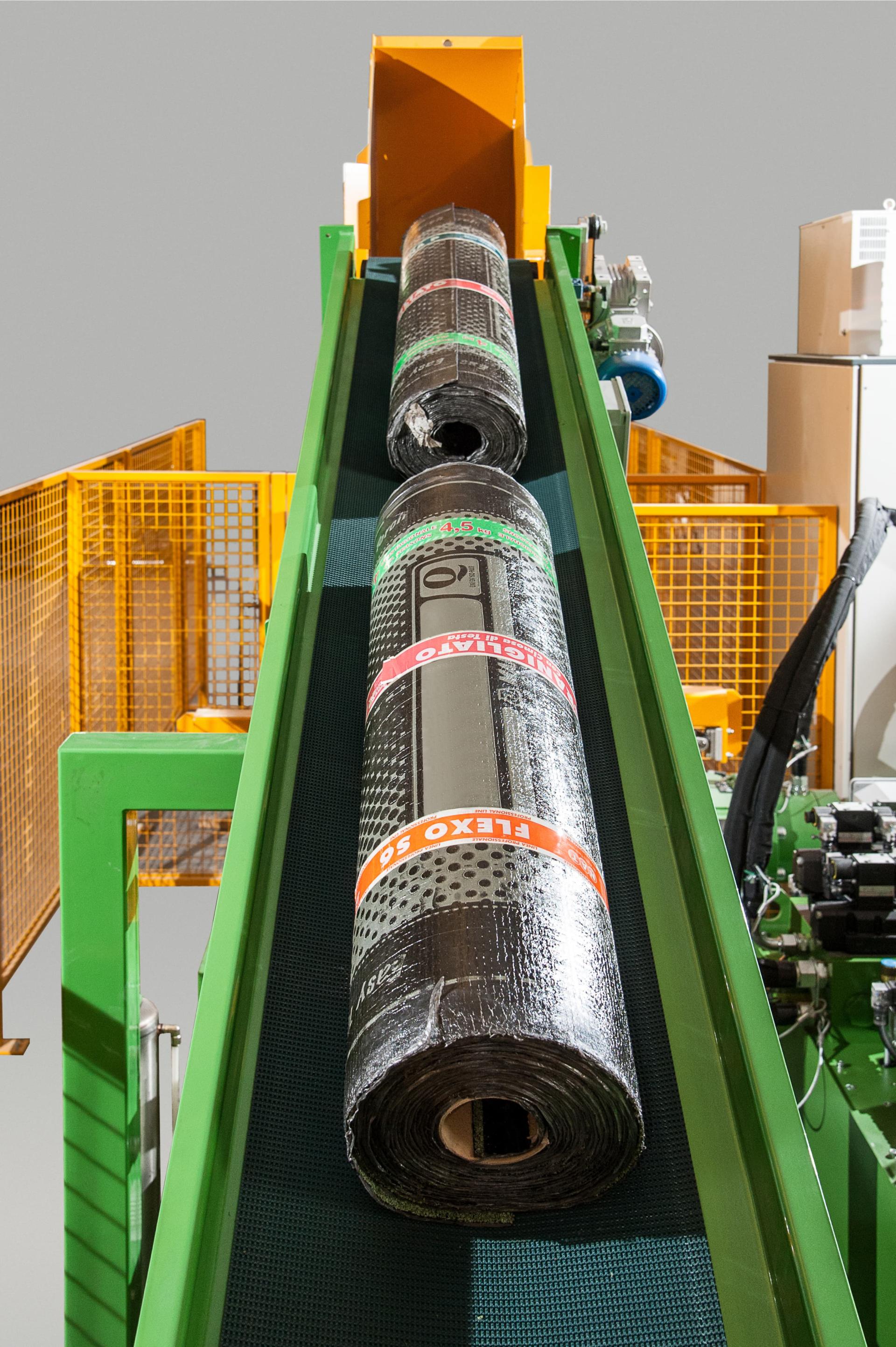

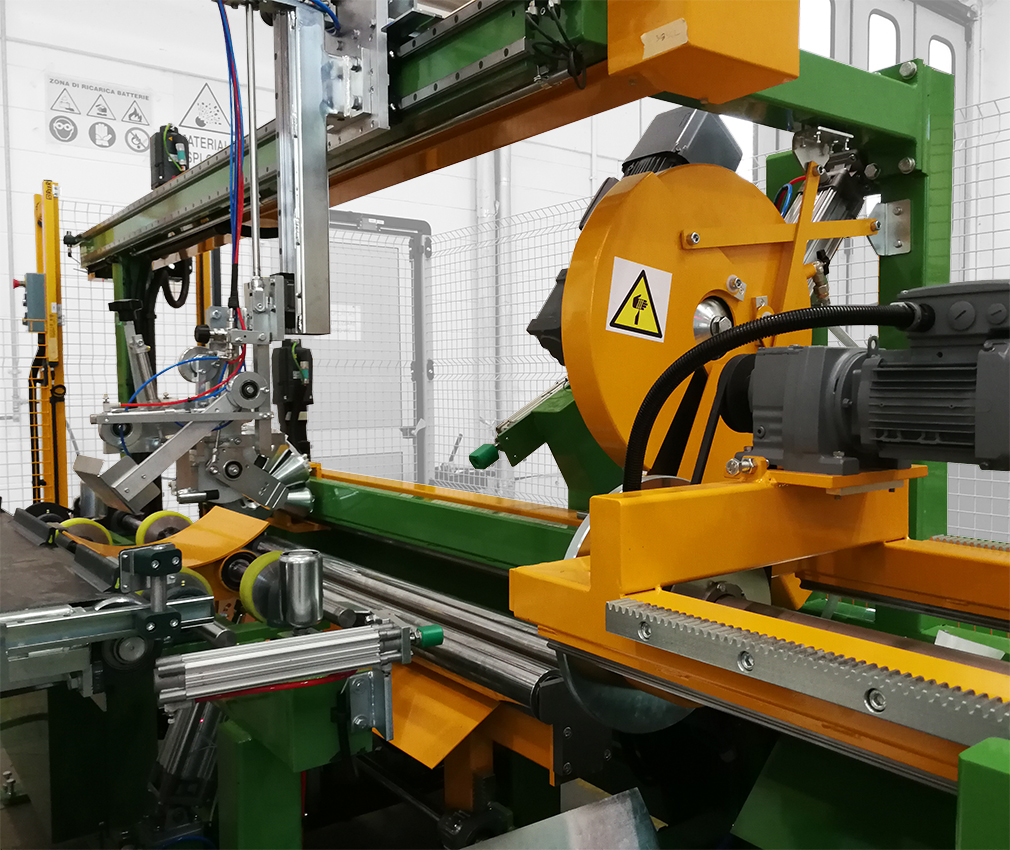

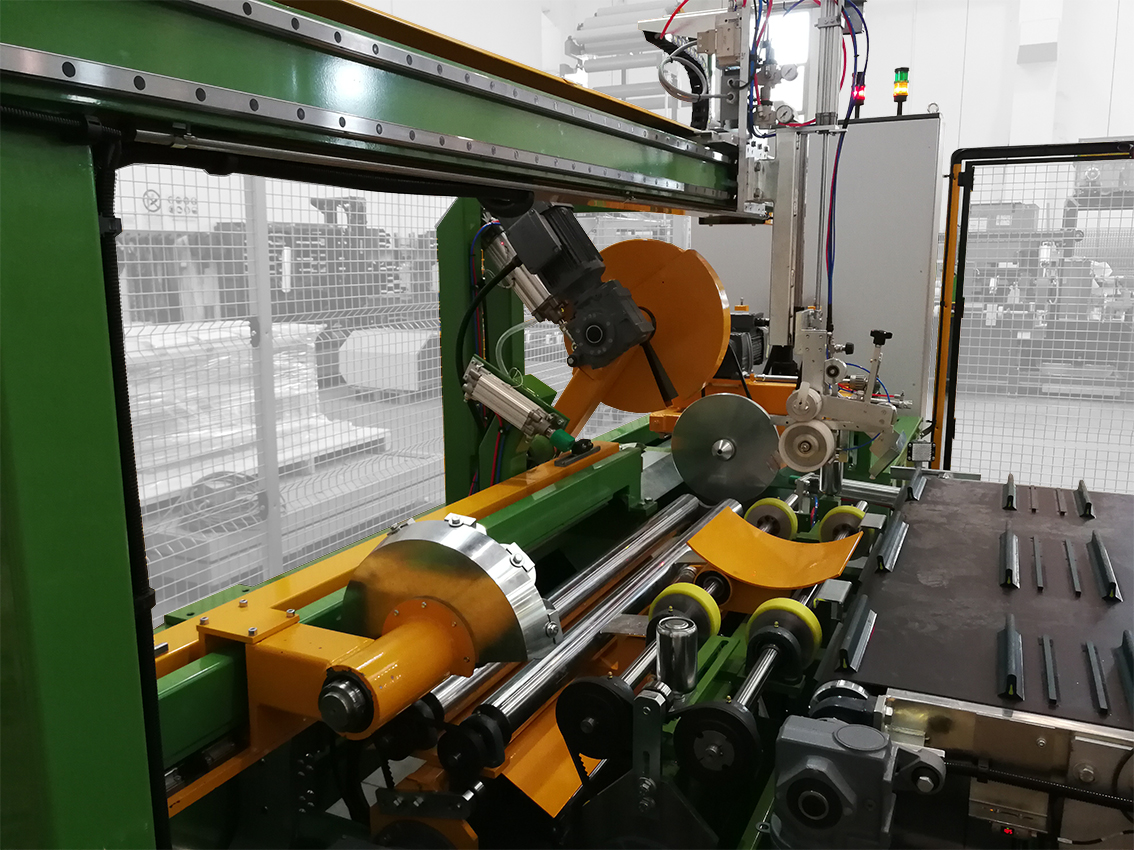

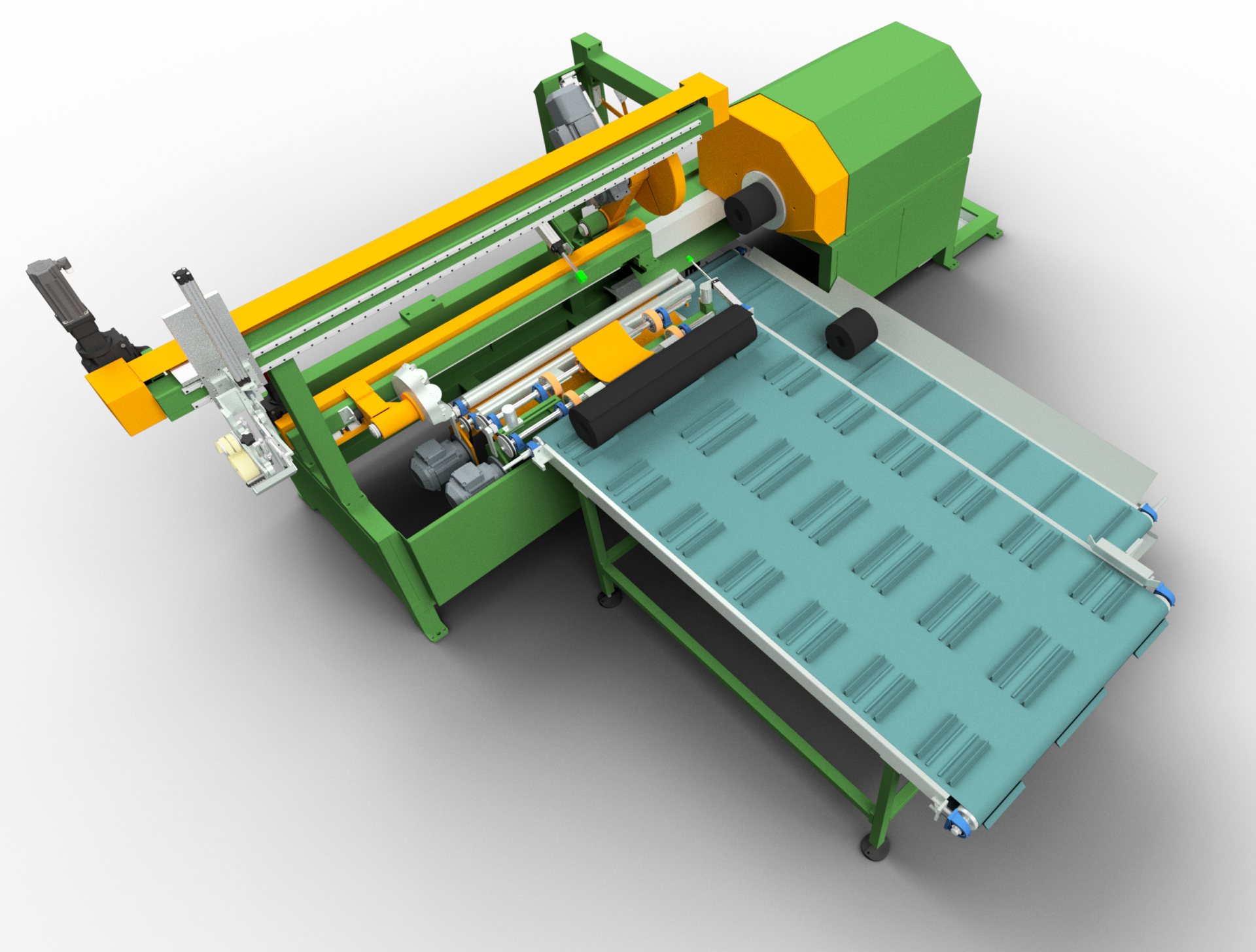

This equipment can cut the bituminous membrane roll in mini-rolls in different sizes.
It can be automatic or semi-automatic.

Main feature:

  • up to 5 cuts per minute
  • all membrane types can be cut: smooth, mineral, sanded, adhesive
  • even with cardboard core
  • machine dimension: 1,200 x 2,400 x 1,300 mm

PDF

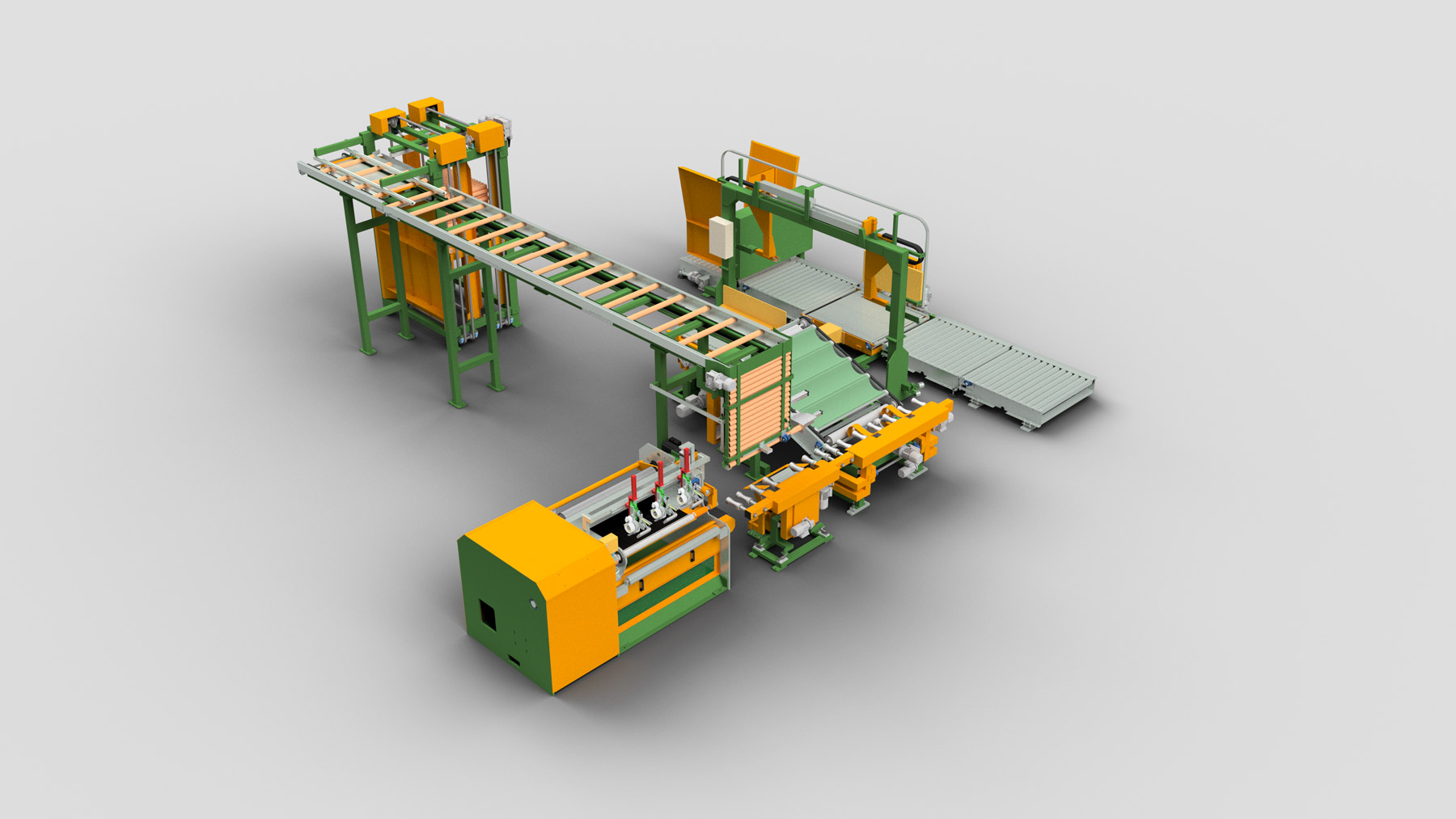

Equipment able to insert up to 10 cardboard roll-cores per minute inside the bituminous waterproofing membrane, when the membrane roll comes out from the winder.

Main feature:

  • Overall dimension: 1500x2000x2000mm
  • Production speed: up to 10 core/1’
  • Stocking capacity: up to rolls
  • Adjustable on an existing production line

VIDEO

PDF

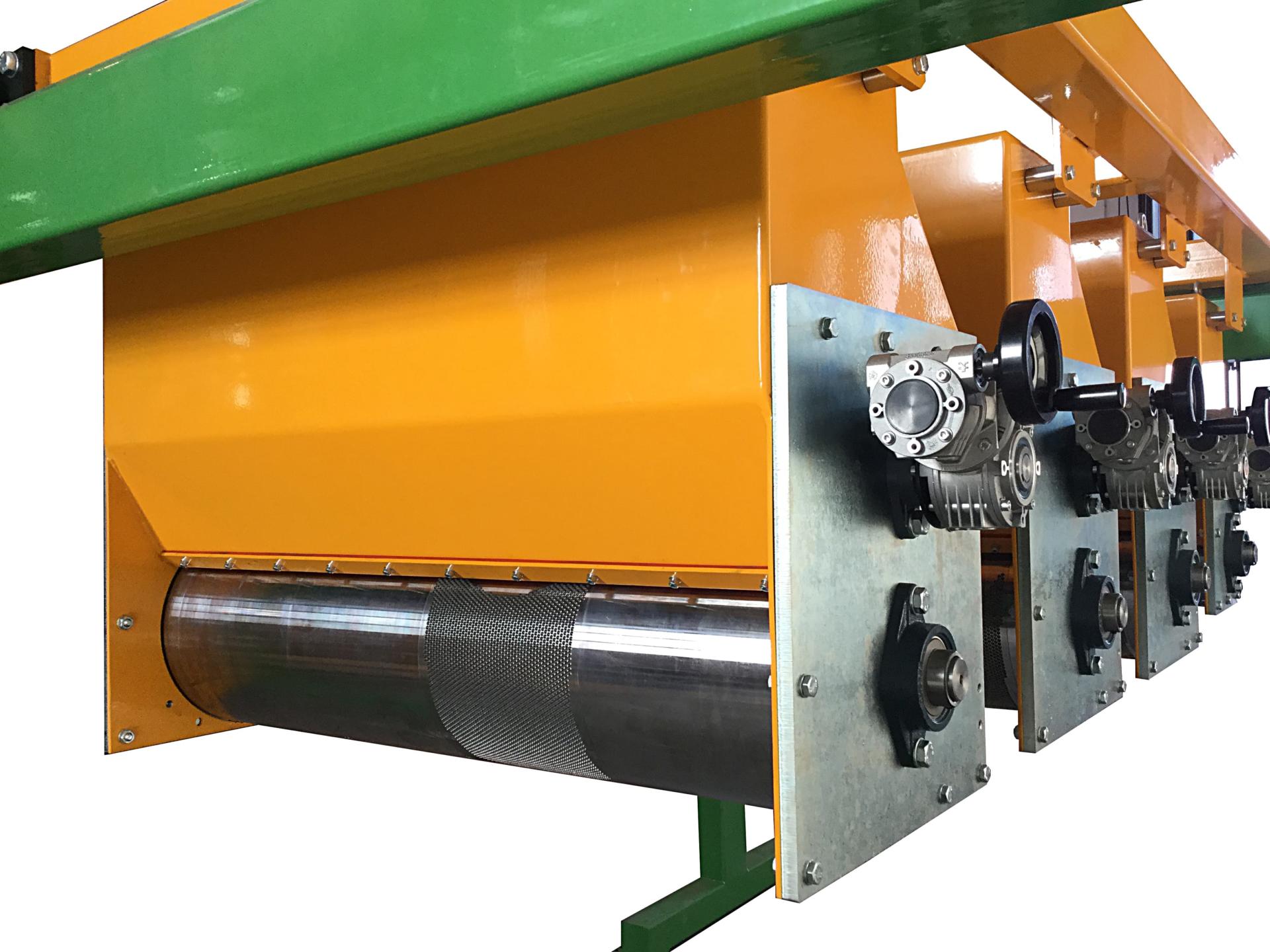

Equipment for design shingle on the surface of the bituminous waterproofing membrane

  • easy to install
  • wide design range based on client drawing
  • multi-color  and shadow design
  • compact (adjustable) dimension: 500 x 1400 x 700mm
  • production speed: up to 80m/1’

PDF

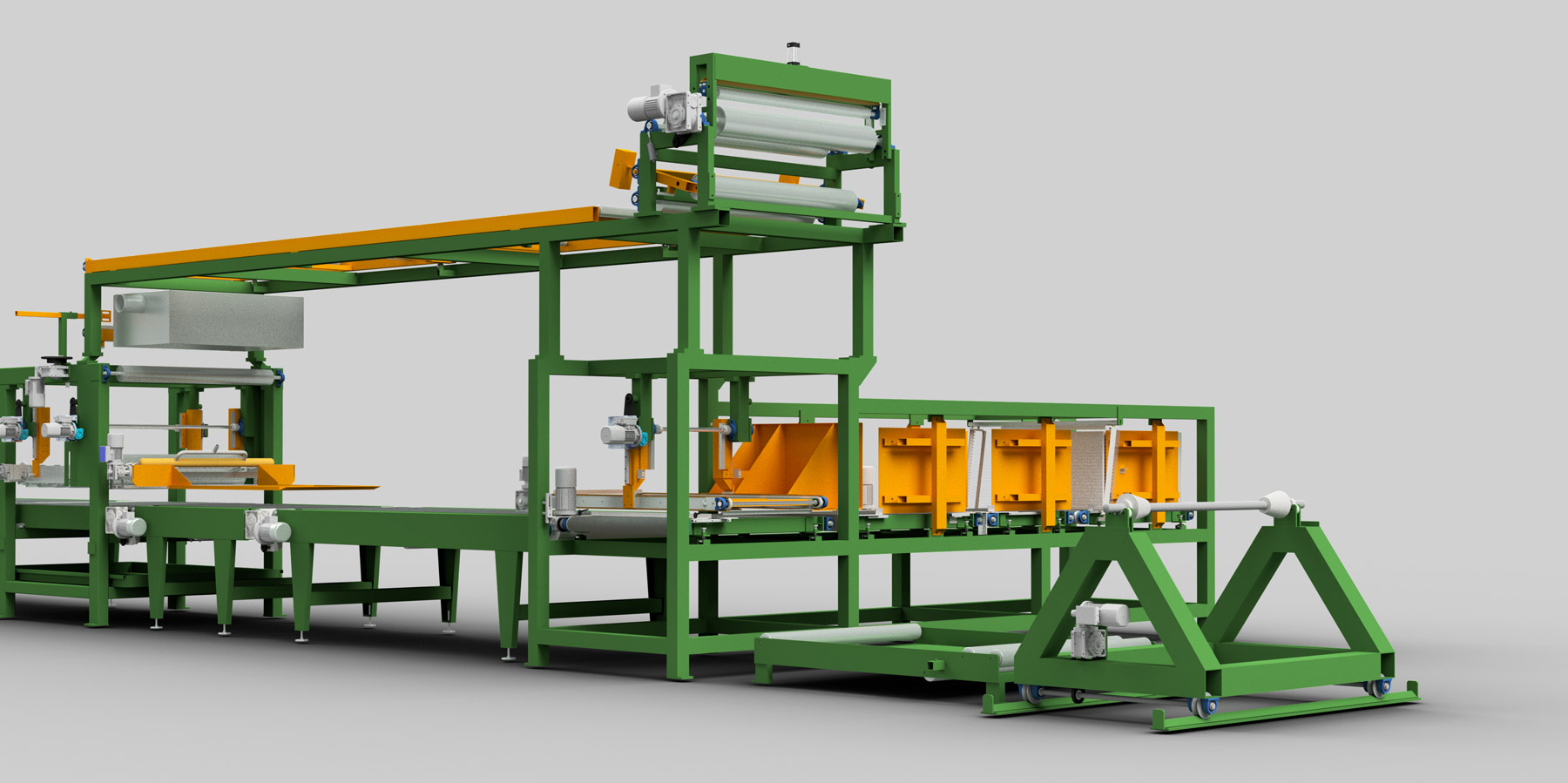

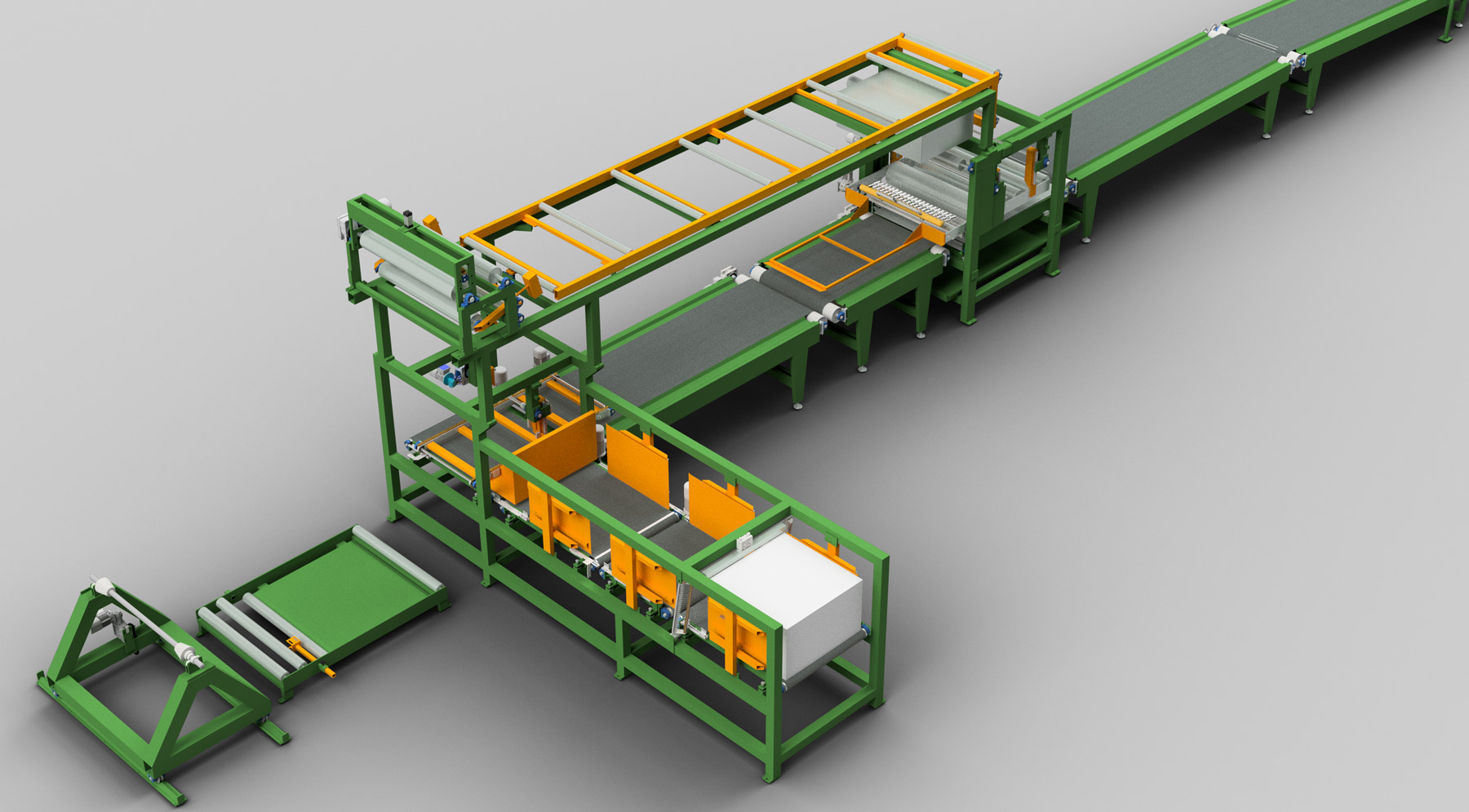

This machinery makes lamination betwen bituminous waterproofing membrane and different kind of insulation pannels.

Main features:

  • line speed up to 20m/min
  • possibility of laminating to the wave profile or the flat side of the board
  • possibility of laminating slope elements up to 300mm
